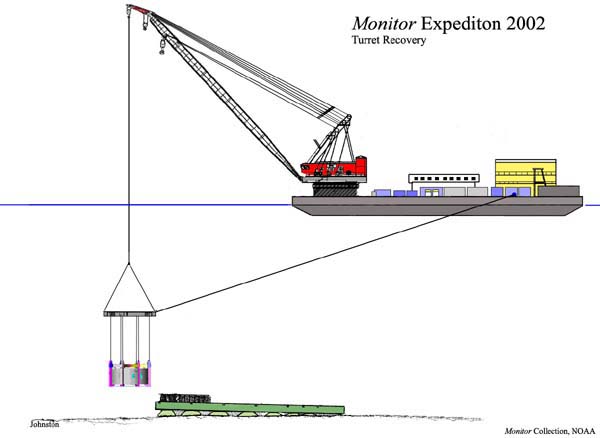

turret lift diagram

As shown in this diagram, the turret will be lifted from the seafloor only after it has been securely and safely grasped by the Spider. Both the turret and Spider then will be lifted using strong steel cables lowered from a crane on the derrick barge Wotan.
