a hull-mounted multibeam sonar while towing a sidescan sonar

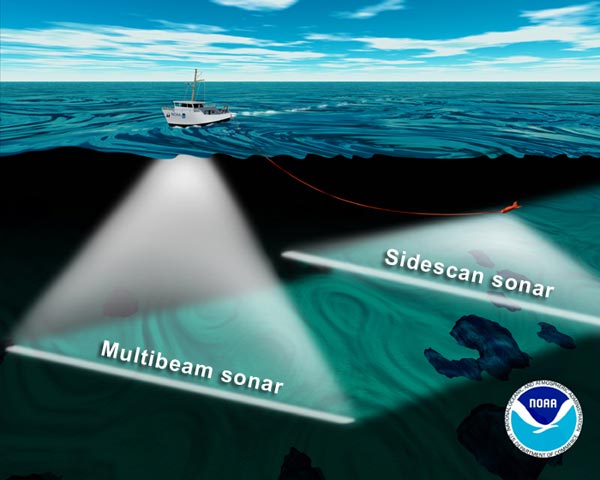

Illustration of a ship using a hull-mounted multibeam sonar while towing a side-scan sonar on a cable. Both sonars map the sea floor in a swath below the ship as it drives forward.
