Project Summary

In 2021, scientists and engineers at the Ocean Engineering Department of University of Rhode Island successfully developed and demonstrated a novel soft robotic system for underwater exploration with support from NOAA Ocean Exploration.

There are a great number of targets and objects on the seafloor and in the water column that ocean scientists want to interact with and/or sample. But scientists tend not to know ahead of time the exact shape and composition of these objects and whether they are fragile, brittle, hard, or soft. In this regard, soft robotics as an emerging technology is uniquely suited for grasping, manipulating, and sampling underwater. As compared with rigid metallic robots that may potentially damage or destroy delicate items when trying to grab them, the malleability of soft robotics allows scientists to interact with diverse marine environments more safely and effectively. Soft robotic systems also draw significantly less power and produce less acoustic noise than conventional hydraulic systems.

With the objective of engineering a programmable, hybrid manipulator that can be actively switched between soft/compliant and hard/rigid states, scientists and engineers at the University of Rhode Island built and tested two types of soft robotic grippers that will conform to an object's shape with light contact forces and pick up the object with the strength of a rigid claw. They tested and identified materials that give grippers neutral buoyancy to maintain their structural integrity in water. And they coupled these grippers with an electric drive, low-pressure hydraulic system that is “platform agnostic” - free from being tied to a specific platform and running equally well across platforms, including inspection-class remotely operated vehicles.

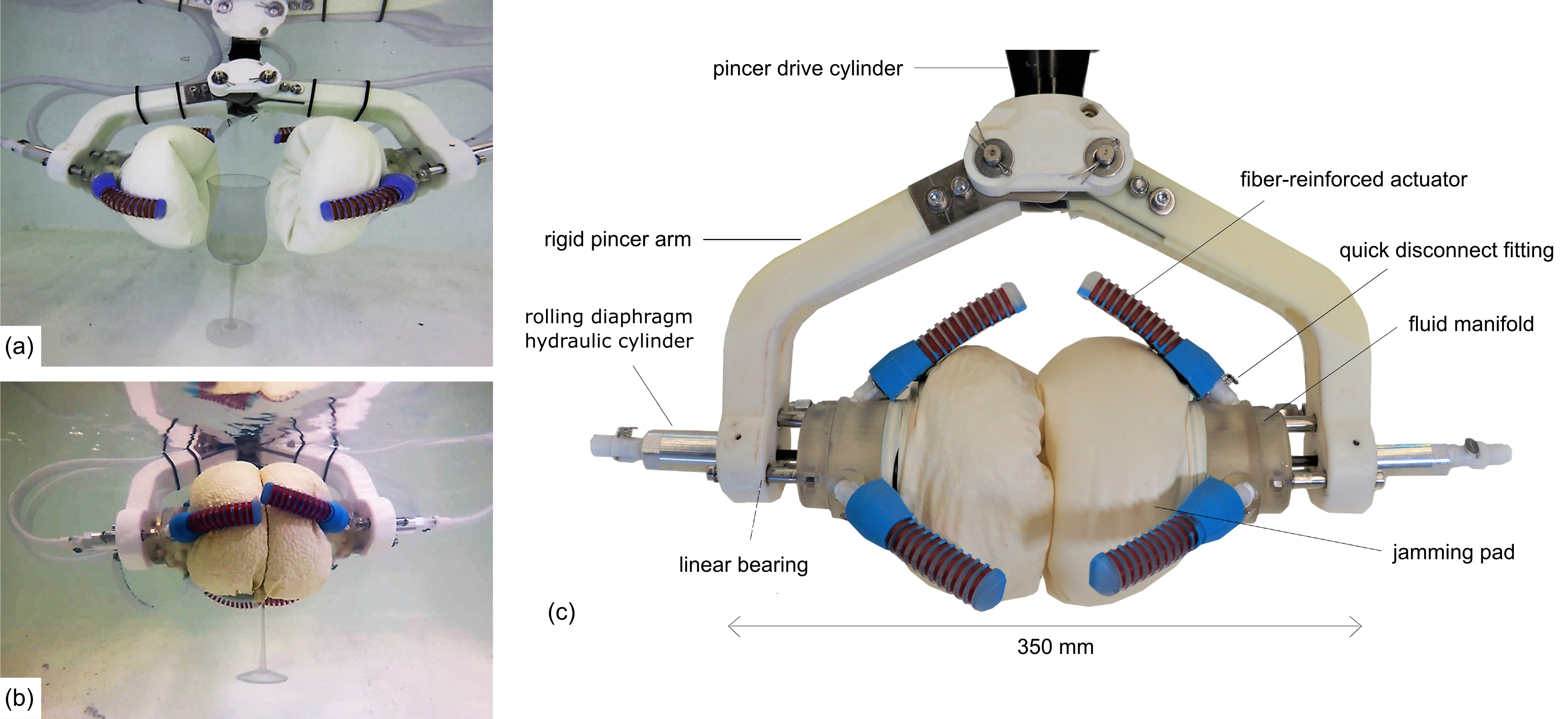

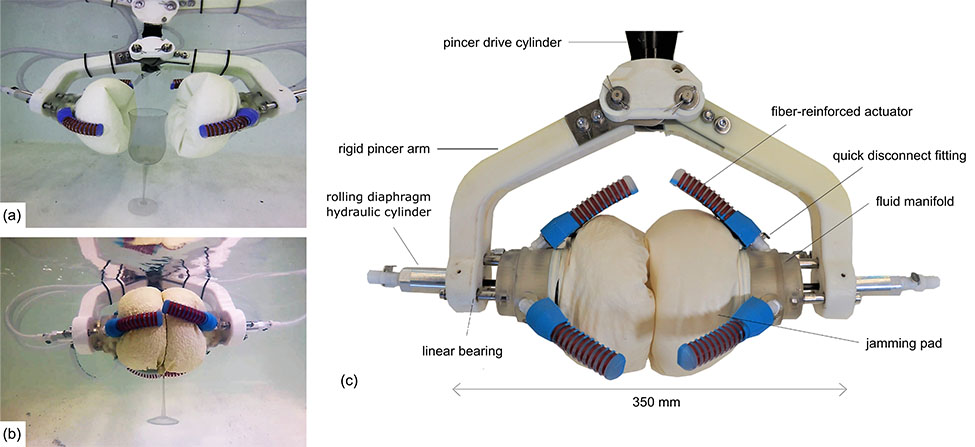

Illustration of hybrid design combining two universal jamming grippers to form a “clamshell” that allows the grippers to grab something not necessarily lying horizontally on the ground.
Illustration of hybrid design combining two universal jamming grippers to form a “clamshell” that allows the grippers to grab something not necessarily lying horizontally on the ground. Image courtesy of Alexander Yin, Stephen Licht, and Brennan Phillips. Download largest version (jpg, 1.3 MB).

The scientists and engineers also applied the technology of additive manufacturing, commonly known as 3D printing, to produce soft robotic manifolds, actuators, and grippers that are more compact and easier to manufacture than previous designs. They used a commercial finite element analysis tool, known as Abaqus, to simulate the behavior of their gripper designs, thus improving their prototypes and assessing their performance with accuracy and cost-effectiveness before printing them. As a result, they also established a modeling approach for optimizing future gripper development.

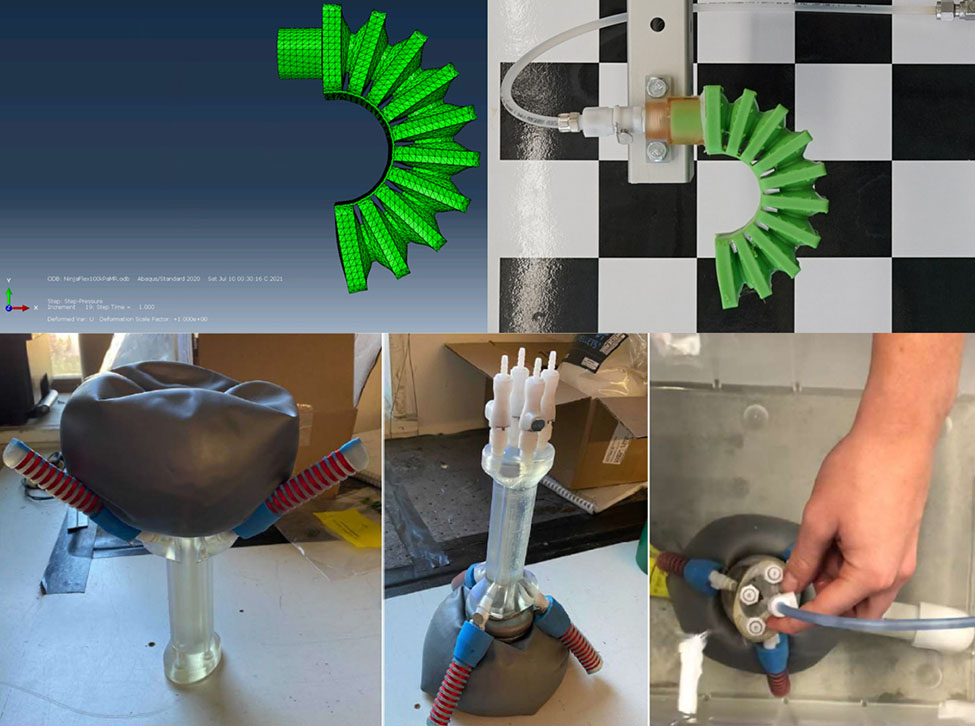

Images of a bellows actuator directly printed using a commercially available print feedstock on a fused deposition printer (above) and a fully integrated jamming gripper with a deformable and expandable air bag (below).
Images of a bellows actuator directly printed using a commercially available print feedstock on a fused deposition printer (above) and a fully integrated jamming gripper with a deformable and expandable air bag (below). Image courtesy of Alexander Yin, Stephen Licht, and Brennan Phillips. Download largest version (jpg, 587 KB).

The scientists and engineers deployed and demonstrated the soft robotics they developed in shallow and deep water, interacting with different underwater environments in a flexible and dynamic way. The low component cost, low system complexity, ease of assembly, adaptability, and robustness all lend themselves to continuous research and development for advancing soft robotics design and its versatile application, including for marine archaeology and biology and ocean exploration in general.

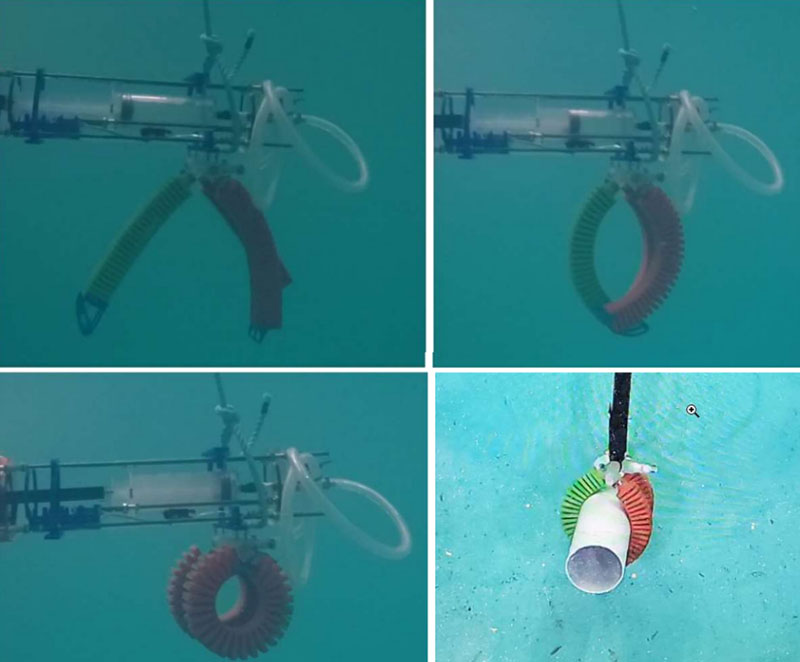

Fused deposition printed three-finger gripper (with 3D printed low-pressure fluid manifold) mounted to and actuated by the linear electric drive system while submerged in the University of Rhode Island Acoustic Test Tank (top left and right, and bottom left); successful grasp of a large cylinder using the actuator and fluid drive system (bottom right).
Fused deposition printed three-finger gripper (with 3D printed low-pressure fluid manifold) mounted to and actuated by the linear electric drive system while submerged in the University of Rhode Island Acoustic Test Tank (top left and right, and bottom left); successful grasp of a large cylinder using the actuator and fluid drive system (bottom right). Image courtesy of Alexander Yin, Stephen Licht, and Brennan Phillips. Download largest version (jpg, 236 KB).

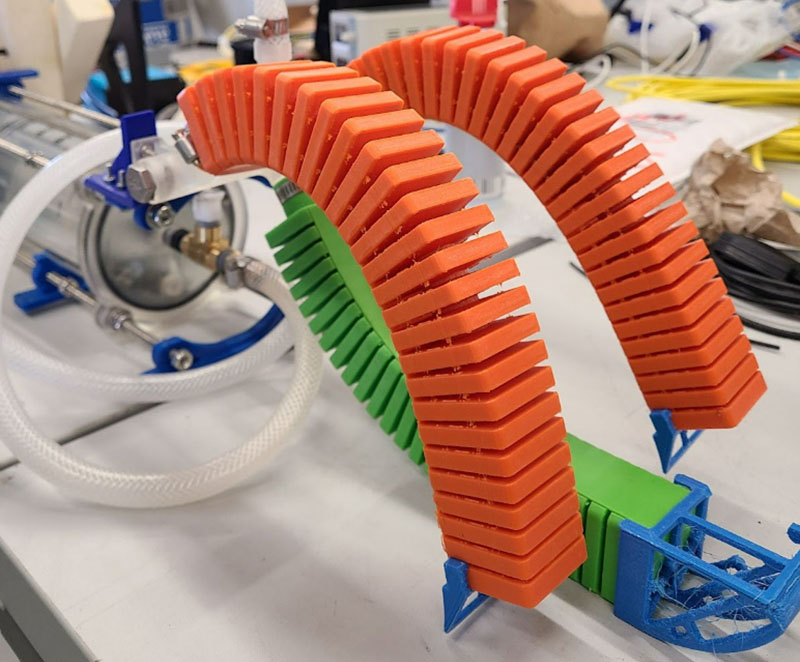

The fused deposition printed three-finger gripper outside of the test tank.
The fused deposition printed three-finger gripper outside of the test tank. Image courtesy of Alexander Yin, Stephen Licht, and Brennan Phillips. Download largest version (jpg, 404 KB).

Contributed by Liang Wu, NOAA Ocean Exploration
Published October 31, 2022


Funding for this project was provided by NOAA Ocean Exploration via its Ocean Exploration Fiscal Year 2018 Funding Opportunity.
